ASIO Soundboard

This is a simple soundboard app built using C# and Flutter. Lets you play audio clips into any ASIO device using hotkeys. Recommended to use together with AutoHotkey and JackRouter.

Board	Settings

Features

Save/load soundboard from a file
Trigger sounds using http requests or from an AHK script
Resample audio files to match your audio card settings
Change volume for the whole app or each individual sound
Adjust UI to your preference
More features coming in the future…

Installation and Usage

Download the lates release (.zip file) from the Releases panel
Unzip the archive
Launch the app

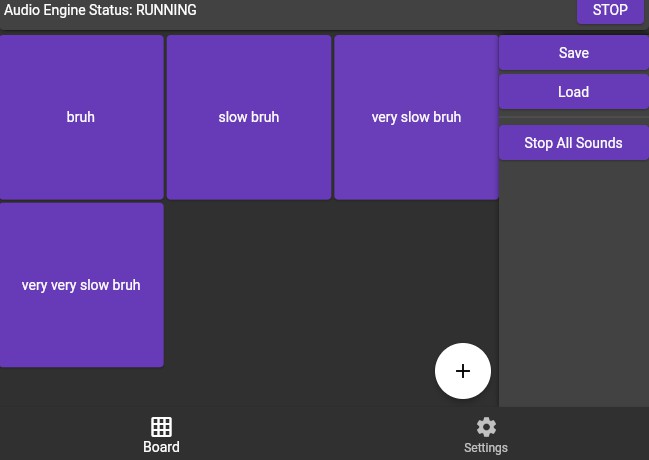

When the app is running, go to Settings and select an Audio Device you want to use for playback. Then select the Sample Rate your device is working at (to set or see your device’s sample rate, find and open it’s control panel). After that hit the Start button at the top-right of the app window. If everything is done correctly, the text in top-left will say that the Audio Engine is working. You can hit the button again to stop it at any time. Now you can actually play the sounds by navigating to Board and hitting the + button in bottom-right. Use the dialog to add a sound, when done click the tile that just appeared and you will hear the sound you selected. You can also right-click the tile to open it’s menu.

Building

Clone the repository
Make sure you have the latest Flutter SDK and .NET 6 installed
Open the terminal in ‘flutter-ui’ directory (located inside C# project folder)
Run flutter pub get
Run flutter build web. Note: this might fail if you placed the project on a network drive. If it fails, move the project to a local drive, or create a symlink pointing to it
Open C# solution
Set Configuration to ‘Release’
Click ‘Build’ at the top and select ‘Build Solution’ (or hit F6)

You will find compiled project somewhere in the bin directory.

Development

You may notice that C# project has several launch profiles. ‘main’ profile starts debugging normally. ‘no-ui’ also starts debugging normally, but disables app’s UI. When launching this way you can debug the Flutter app separately from the main application (it will still connect to it and work fine, because all the communication is done via WebSockets). To debug the Flutter app, simply open Flutter project in VS Code and hit F5 (I personally selected a Windows build to debug the app, but web version should also work fine). Note that the Host (C# app) must by already running, otherwise the communication will fail. Also, in the current implementation, when you close the Flutter app the Host continues running, and launching the Flutter app again may lead to unexpected results, so make sure to also restart the host when restarting the UI.

Guides

I will update this section with links to this repo’s wiki, where I will describe how to set up AHK, JackRouter and maybe some other stuff.

Credits

Following libraries and packages are used in this project:

WPF (.NET 6) and Flutter
NAudio – Audio playback and processing
EmbedIO – Serving the UI; WebSocket and HTTP communication
flutter_bloc – Flutter state management
web_socket_channel – Flutter WebSocket client
