Provide the user guildance widget to make developers easy to make new user tips

Flutter User Guildance

Provide the user guildance widget to make developers easy to make new user tips.

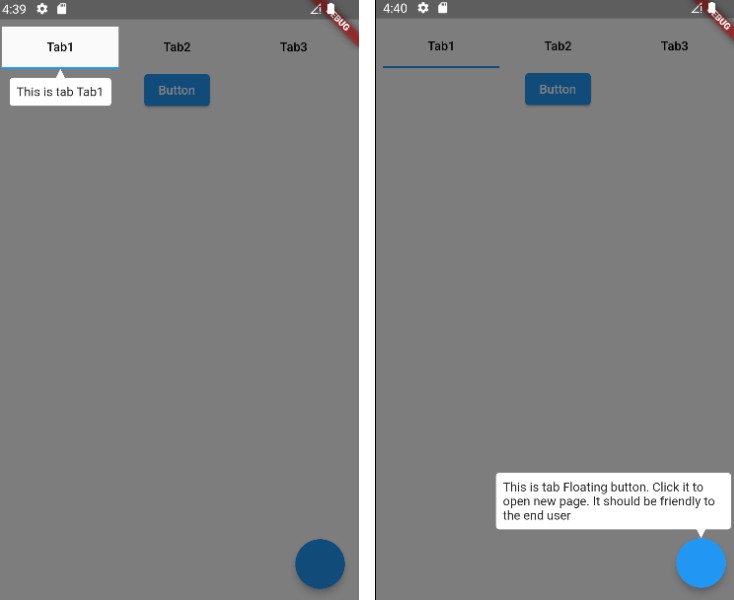

Screen

Simple Example

class _SimplePageState extends State<SimplePage> {
  UserGuidanceController userGuidanceController = UserGuidanceController();

  @override
  Widget build(BuildContext context) {
    return UserGuidance(
      controller: userGuidanceController,
      opacity: 0.5,
      child: Scaffold(
        floatingActionButton: UserGuildanceAnchor(
            index: 1,
            tag: "This is tab Floating button.",
            child: FloatingActionButton(
              onPressed: () {
                userGuidanceController.show();
              },
            )),
        body: SafeArea(
          child: Padding(
            padding: const EdgeInsets.all(40.0),
            child: UserGuildanceAnchor(
              index: 2,
              tag: "Start press the button",
              child:
                  ElevatedButton(onPressed: () {}, child: const Text("Button")),
            ),
          ),
        ),
      ),
    );
  }

  @override
  void dispose() {
    userGuidanceController.dispose();
    super.dispose();
  }
}

Complex Example

class _HomePageState extends State<HomePage> {
  UserGuidanceController userGuidanceController = UserGuidanceController();
  var tabs = ["Tab1", "Tab2", "Tab3"];

  @override
  void dispose() {
    userGuidanceController.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return UserGuidance(
      controller: userGuidanceController,
      opacity: 0.5,
      slotBuilder: (context, data) {
        if (data?.index == 1) {
          return BoxDecoration(
            color: Colors.white,
            borderRadius: BorderRadius.circular(data!.position.height / 2.0),
          );
        }
        return null;
      },
      tipBuilder: (context, data) {
        if (data != null) {
          return TipWidget(
            child: ConstrainedBox(
                constraints: const BoxConstraints(maxWidth: 250.0),
                child: Text("${data.tag}")),
            data: data,
          );
        }

        return null;
      },
      child: DefaultTabController(
          length: tabs.length,
          child: Scaffold(
            floatingActionButton: UserGuildanceAnchor(
                index: 1,
                tag:
                    "This is tab Floating button. Click it to open new page. It should be friendly to the end user",
                child: FloatingActionButton(
                  onPressed: () {
                    userGuidanceController.show();
                  },
                )),
            body: SafeArea(
              child: Padding(
                padding: const EdgeInsets.all(8.0),
                child: Column(children: [
                  TabBar(
                      tabs: tabs.map<Widget>((txt) {
                    var subIndex = tabs.indexOf(txt);
                    return Tab(
                        child: UserGuildanceAnchor(
                            index: 0,
                            subIndex: subIndex,
                            reportType: AnchorReportParentType.tab,
                            tag: "This is tab $txt",
                            child: Text(
                              txt,
                              style: const TextStyle(color: Colors.black),
                            )));
                  }).toList()),
                  UserGuildanceAnchor(
                    index: 2,
                    tag: "Start press the button",
                    adjustRect: (rect) {
                      return Rect.fromLTWH(rect.left, rect.top + 5.0,
                          rect.width, rect.height - 10.0);
                    },
                    child: ElevatedButton(
                        onPressed: () {}, child: const Text("Button")),
                  ),
                  Expanded(
                      child: TabBarView(
                    children: tabs.map<Widget>((txt) => Container()).toList(),
                  ))
                ]),
              ),
            ),
          )),
    );
  }
}
