Flutter ConstraintLayout

Build flexible layouts with constraints, Similar to Android ConstraintLayout.

No matter how complex the layout is and how deep the dependencies are, each child element of ConstraintLayout will only be measured once, This results in extremely high layout performance.

Feature

  1. build flexible layouts with constraints
  2. margin and goneMargin
  3. clickPadding(expand the click area of child elements without changing their actual size)
  4. visibility control
  5. constraint integrity hint
  6. bias

Coming soon:

  1. guideline
  2. barrier
  3. constraints visualization
  4. chain
  5. more…

Support platform:

  1. Android
  2. iOS
  3. Mac
  4. Windows
  5. Linux
  6. Web

Import

Null-safety

dependencies:
  flutter_constraintlayout:
    git:
      url: 'https://github.com/hackware1993/Flutter-ConstraintLayout.git'
      ref: 'v0.1-alpha'

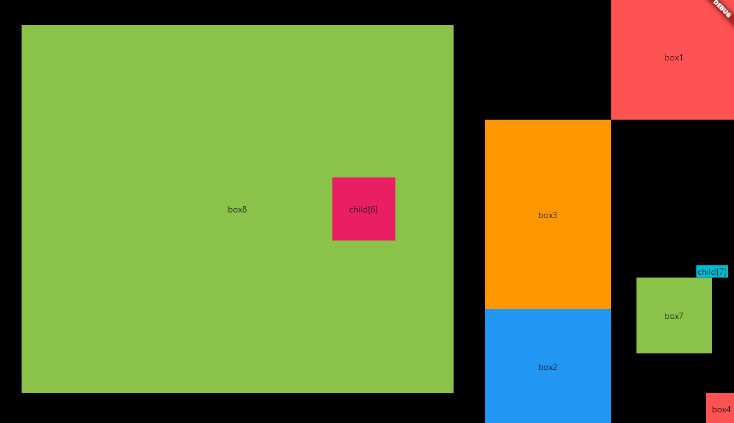

Example

import 'package:flutter/material.dart';
import 'package:flutter_constraintlayout/constrait_layout/constraint_layout.dart';

void main() {
  runApp(MaterialApp(
    home: Scaffold(
      backgroundColor: Colors.black,
      body: ConstraintLayout(
        children: [
          Constrained(
            id: 'box1',
            width: 200,
            height: 200,
            topToTop: CL.parent,
            rightToRight: CL.parent,
            child: Container(
              color: Colors.redAccent,
              alignment: Alignment.center,
              child: const Text('box1'),
            ),
          ),
          Constrained(
            id: 'box2',
            width: CL.matchConstraint,
            height: CL.matchConstraint,
            leftToLeft: 'box3',
            rightToRight: 'box3',
            topToBottom: 'box3',
            bottomToBottom: CL.parent,
            child: Container(
              color: Colors.blue,
              alignment: Alignment.center,
              child: const Text('box2'),
            ),
          ),
          Constrained(
            id: 'box4',
            width: 50,
            height: 50,
            rightToRight: CL.parent,
            bottomToBottom: CL.parent,
            child: Container(
              color: Colors.redAccent,
              alignment: Alignment.center,
              child: const Text('box4'),
            ),
          ),
          Constrained(
            id: 'box7',
            width: 120,
            height: 120,
            centerVertical: true,
            verticalBias: 0.5,
            leftToRight: 'box3',
            rightToRight: CL.parent,
            horizontalBias: 0.5,
            child: Container(
              color: Colors.lightGreen,
              alignment: Alignment.center,
              child: const Text('box7'),
            ),
          ),
          Constrained(
            id: 'box8',
            width: CL.matchConstraint,
            height: CL.matchConstraint,
            topToTop: 'box1',
            leftToLeft: CL.parent,
            rightToLeft: 'box3',
            bottomToBottom: CL.parent,
            margin: const EdgeInsets.all(50),
            child: Container(
              color: Colors.lightGreen,
              alignment: Alignment.center,
              child: const Text('box8'),
            ),
          ),
          Constrained(
            id: 'box3',
            width: CL.wrapContent,
            height: CL.wrapContent,
            rightToLeft: 'box1',
            topToBottom: 'box1',
            child: Container(
              color: Colors.orange,
              width: 200,
              height: 300,
              alignment: Alignment.center,
              child: const Text('box3'),
            ),
          ),
          Constrained(
            width: 100,
            height: 100,
            center: true,
            child: Container(
              color: Colors.pink,
              alignment: Alignment.center,
              child: const Text('child[6]'),
            ),
          )
        ],
      ),
    ),
  ));
}

Support me

If it helps you, consider sponsoring me a cup of milk tea.

License

MIT License
