An open-source flutter tools to help developers fine tune/show-case design systems

flutter_design

flutter_design contains packages to help you bootstrap your design system with a well defined framework and code generation/CLI toolchain. It also contains a powerful design system viewer to let you visualize and interact with your design system.

---

Demo

Checkout the generated viewer app https://flutter-design-7b479.web.app/ using the example code.

---

Features

Here are the key objectives of the project:

• Provide tools to create a design system and a simple workflow to document/visualize it
  • Provide a guideline/classes to build the system
  • Provide a code generator to reduce boilerplates
  • Provide a CLI to speed up and organize widgets (TBD)
• Provide a powerful design viewer with the following core features
  • Cross-platform: visualize on web/desktop/mobile
  • Complete design documentation system
  • Book-like structure & fully integrated search (currently only supporting in-memory search, with an interface inspired by https://www.algolia.com/ref/docsearch/)
  • Visualize UX in multiple synchronized frames (user interaction such as scroll, tap, drag is propagated) across
    • Different device frames
    • Different theme frames
    • Different locale frames
  • Runtime data configuration: you can easily "try-out" different data in runtime, e.g. Color, Values, or even Widget! It is also possible to create your own data generator.

The UX and design is inspired by Wanda Design System.

---

Basic integration

First, on your code base (where you will implement your design system/widgets) you have to add the following dependencies to your pubspec.yaml:

dependencies:
  #...
  flutter_design:

dev_dependencies:
  #...
  build_runner:
  flutter_design_codegen:

Then you would need to annotate the widgets you want to integrate in the design system viewer using the @design annotation. Yes, it's that easy!

@design
class SpecialWidget extends StatelessWidget {
  ...
}

After running flutter packages pub run build_runner build --delete-conflicting-outputs the catalogs will be generated:

• /lib/**/*.design.dart: generated widget component pagesfor the partial file.
• lib/page_factory.design.dart: this contains the aggregated generatedComponentPages that can be directly pass to the DesignSystemViewerApp described later.

Finally you can create a flutter designer app (currently supporting Android, iOS, Web, macOS, Windows) to host the design system viewer by adding the following dependencies to the pubspec.yaml

dependencies:
  #...
  your_package:
  flutter_design:
  flutter_design_viewer:

Then you need to basically setup the design system viewer in your app using the generatedComponentPages along with some other settings you might want to configure:

• enabledLocales the locales your design system supports
• enabledThemes the ThemeData your design system supports

You can also customize the pages by creating static or dynamic contents. For more information, please check the docs.

setPathUrlStrategy(); // Recommended to make history browsing work better in web
runApp(
    DesignSystemViewerApp(
      settings: ViewerSettings(
        enabledLocales: {
          'en-US': const Locale('en', 'US'),
        },
        enabledThemes: {
          'light': ThemeData.light(),
          'dark': ThemeData.dark(),
        },
      ),
      pageGroups: buildComponentPageTree(componentPages: generatedComponentPages),
    ),
);

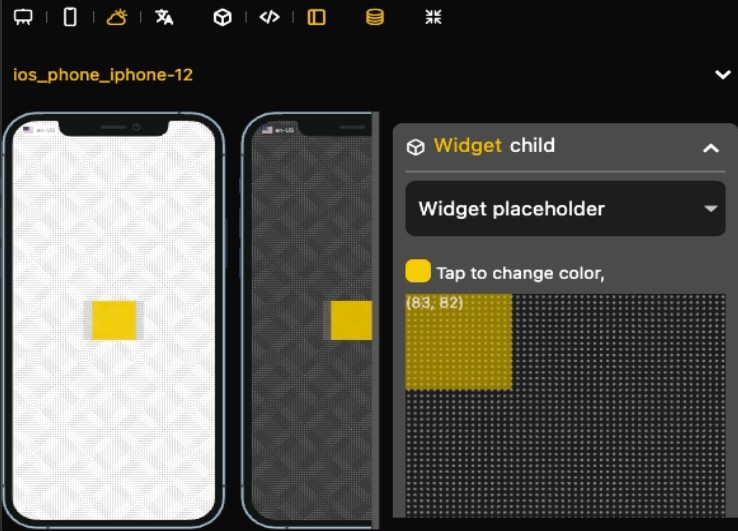

That's it! You can then run your designer app on any supported platform. You can checkout some of the screenshots below or rather check the demo app :P
