Adds remote compilation to your Flutter application to test fragment shaders
shader
Adds remote compilation to your Flutter application to test fragment shaders.
Usage
Use the GlslFragmentProgramBuilder
widget to get your shader compiled.
Quick example
class ScreenUsingShader extends StatelessWidget {
const ScreenUsingShader({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Scaffold(
body: Container(
child: GlslFragmentProgramBuilder(
// GLSL shader code
code: '''
#version 320 es
precision highp float;
layout(location = 0) out vec4 fragColor;
void main() {
fragColor = vec4(1.0, 0.0, 0.0, 1.0);
}
''',
builder: (context, shaderProgram) {
if (shaderProgram == null) {
// shader is compiling
return const CircularProgressIndicator();
}
// shader is reader to use
return DoSomethingWithShader(shaderProgram);
},
),
),
);
}
}
Full application example
import 'dart:typed_data';
import 'dart:ui';
import 'package:flutter/material.dart';
import 'package:shader/shader.dart';
void main() {
runApp(const MaterialApp(home: ScreenUsingShader()));
}
class ScreenUsingShader extends StatelessWidget {
const ScreenUsingShader({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Scaffold(
body: GlslFragmentProgramBuilder(
code: '''
#version 320 es
precision highp float;
layout(location = 0) out vec4 fragColor;
layout(location = 0) uniform float timeElapsed;
layout(location = 1) uniform vec2 size;
void main() {
float time = fract(timeElapsed);
vec3 color = vec3(time, gl_FragCoord.xy / size.xy);
fragColor = vec4(color, 1.0);
}
''',
builder: (context, shaderProgram) {
if (shaderProgram == null) {
return const Center(child: CircularProgressIndicator());
}
return RebuildEachFrame(builder: (context) {
return SizedBox.expand(
child: CustomPaint(painter: ShaderPainter(shaderProgram)),
);
});
},
),
);
}
}
/// Will paint an area with our beautiful fragment shader
class ShaderPainter extends CustomPainter {
final FragmentProgram shaderProgram;
ShaderPainter(this.shaderProgram);
@override
void paint(Canvas canvas, Size size) {
var time = (DateTime.now().millisecondsSinceEpoch % 3000) / 3000.0;
final shader = shaderProgram.shader(
floatUniforms: Float32List.fromList([time, size.width, size.height]),
);
canvas.drawRect(
Rect.fromLTWH(0, 0, size.width, size.height),
Paint()..shader = shader,
);
}
@override
bool shouldRepaint(covariant CustomPainter oldDelegate) => true;
}

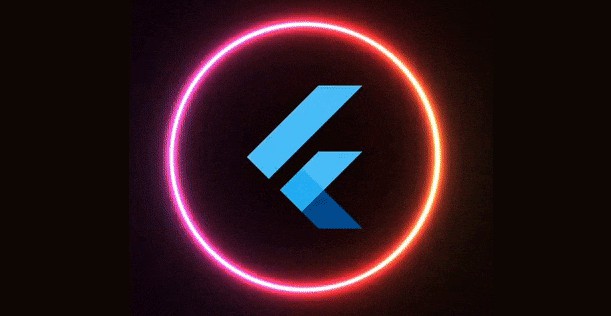

Glowing ring
Based on https://www.shadertoy.com/view/XdlSDs:
import 'dart:math';
import 'dart:typed_data';
import 'dart:ui';
import 'package:flutter/material.dart';
import 'package:shader/shader.dart';
void main() {
runApp(const MaterialApp(home: ScreenUsingShader()));
}
class ScreenUsingShader extends StatelessWidget {
const ScreenUsingShader({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return Scaffold(
body: GlslFragmentProgramBuilder(
code: '''
#version 320 es
// based on: https://www.shadertoy.com/view/XdlSDs
precision highp float;
layout(location = 0) out vec4 fragColor;
layout(location = 0) uniform float timeElapsed;
layout(location = 1) uniform vec2 size;
void main() {
vec2 p = (2.0*gl_FragCoord.xy-size.xy)/size.y;
float tau = 3.1415926535*2.0;
float a = atan(p.x,p.y);
float r = length(p)*0.75;
vec2 uv = vec2(a/tau,r);
float xCol = (uv.x - (timeElapsed / 3.0)) * 3.0;
xCol = mod(xCol, 3.0);
vec3 horColour = vec3(0.25, 0.25, 0.25);
if (xCol < 1.0) {
horColour.r += 1.0 - xCol;
horColour.g += xCol;
} else if (xCol < 2.0) {
xCol -= 1.0;
horColour.g += 1.0 - xCol;
horColour.b += xCol;
} else {
xCol -= 2.0;
horColour.b += 1.0 - xCol;
horColour.r += xCol;
}
uv = (2.0 * uv) - 1.0;
float beamWidth = (0.7 + 0.5 * cos(uv.x * 10.0 * tau * 0.15 * clamp(floor(5.0 + 10.0 * cos(timeElapsed)), 0.0, 10.0))) * abs(1.0 / (30.0 * uv.y));
vec3 horBeam = vec3(beamWidth);
fragColor = vec4(((horBeam) * horColour), 1.0);
}
''',
builder: (context, shaderProgram) {
if (shaderProgram == null) {
return const Center(child: CircularProgressIndicator());
}
return RebuildEachFrame(builder: (context) {
return LayoutBuilder(builder: (context, constraints) {
return SizedBox.expand(
child: CustomPaint(
painter: ShaderPainter(shaderProgram),
child: Center(
child: SizedBox(
width: constraints.biggest.shortestSide * 0.4,
height: constraints.biggest.shortestSide * 0.4,
child: const FlutterLogo()),
),
),
);
});
});
},
),
);
}
}
/// Will paint an area with our beautiful fragment shader
class ShaderPainter extends CustomPainter {
final FragmentProgram shaderProgram;
ShaderPainter(this.shaderProgram);
@override
void paint(Canvas canvas, Size size) {
var time = (DateTime.now().millisecondsSinceEpoch % 3000) / 3000.0;
final shader = shaderProgram.shader(
floatUniforms: Float32List.fromList([
(0.7 * pi) + (sin(pi * time) * (0.3 * pi)),
size.width,
size.height
]),
);
canvas.drawRect(
Rect.fromLTWH(0, 0, size.width, size.height),
Paint()..shader = shader,
);
}
@override
bool shouldRepaint(covariant CustomPainter oldDelegate) => true;
}
Other resources
- https://github.com/flutter/engine/tree/master/lib/spirv
- https://wolfenrain.medium.com/flutter-shaders-an-initial-look-d9eb98d3fd7a
