ChatView

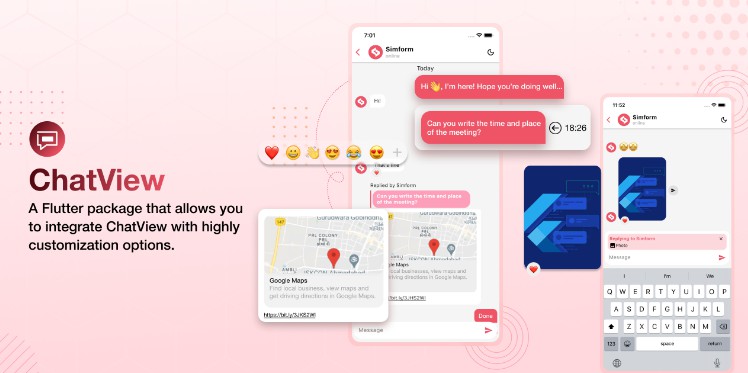

A Flutter package that allows you to integrate Chat View with highly customization options such as one on one chat, group chat, message reactions, reply messages, link preview and configurations for overall view.

For web demo visit Chat View Example.

Installing

  1. Add dependency to pubspec.yaml

dependencies:
  chatview2: <latest-version>

Get the latest version in the ‘Installing’ tab on pub.dev

  1. Import the package
import 'package:chatview2/chatview2.dart';
  1. Adding a chat controller.

final chatController = ChatController(
  initialMessageList: messageList,
  scrollController: ScrollController(),
  chatUsers: [ChatUser(id: '2', name: 'Simform')],
);
  1. Adding a ChatView widget.

ChatView(
  currentUser: ChatUser(id: '1', name: 'Flutter'),
  chatController: chatController,
  onSendTap: onSendTap,
  chatViewState: ChatViewState.hasMessages, // Add this state once data is available.
)
  1. Adding a messageList with Message class.

List<Message> messageList = [
  Message(
    id: '1',
    message: "Hi",
    createdAt: createdAt,
    sendBy: userId,
  ),
  Message(
    id: '2',
    message: "Hello",
    createdAt: createdAt,
    sendBy: userId,
  ),
];
  1. Adding a onSendTap.

void onSendTap(String message, ReplyMessage replyMessage, Message messageType){
  final message = Message(
    id: '3',
    message: "How are you",
    createdAt: DateTime.now(),
    sendBy: currentUser.id,
    replyMessage: replyMessage,
    messageType: messageType,
  );
  chatController.addMessage(message);
}

Note: you can evaluate message type from messageType parameter, based on that you can perform operations.

Messages types compability

Message Types Android iOS MacOS Web Linux Windows
Text messages ✔️ ✔️ ✔️ ✔️ ✔️ ✔️
Image messages ✔️ ✔️ ✔️ ✔️ ✔️ ✔️
Voice messages ✔️ ✔️ ❌ ❌ ❌ ❌
Custom messages ✔️ ✔️ ✔️ ✔️ ✔️ ✔️

Platform specific configuration

For image Picker

iOS

  • Add the following keys to your Info.plist file, located in <project root>/ios/Runner/Info.plist:

    <key>NSCameraUsageDescription</key>
    <string>Used to demonstrate image picker plugin</string>
    <key>NSMicrophoneUsageDescription</key>
    <string>Used to capture audio for image picker plugin</string>
    <key>NSPhotoLibraryUsageDescription</key>
    <string>Used to demonstrate image picker plugin</string>

For voice messages

iOS

  • Add this two rows in ios/Runner/Info.plist

    <key>NSMicrophoneUsageDescription</key>
    <string>This app requires Mic permission.</string>
  • This plugin requires ios 10.0 or higher. So add this line in Podfile
    platform :ios, '10.0'

Android

  • Change the minimum Android sdk version to 21 (or higher) in your android/app/build.gradle file.
    minSdkVersion 21
  • Add RECORD_AUDIO permission in AndroidManifest.xml
    <uses-permission android:name="android.permission.RECORD_AUDIO"/>

Some more optional parameters

  1. Enable and disable specific features with FeatureActiveConfig.

ChatView(
  ...
  featureActiveConfig: FeatureActiveConfig(
    enableSwipeToReply: true,
    enableSwipeToSeeTime: false,
  ),
  ...
)
  1. Adding an appbar with ChatViewAppBar.

ChatView(
  ...
  appBar: ChatViewAppBar(
    profilePicture: profileImage,
    chatTitle: "Simform",
    userStatus: "online",
    actions: [
      Icon(Icons.more_vert),
    ],
  ),
  ...
)
  1. Adding a message list configuration with ChatBackgroundConfiguration class.

ChatView(
  ...
  chatBackgroundConfig: ChatBackgroundConfiguration(
    backgroundColor: Colors.white,
    backgroundImage: backgroundImage,
  ),
  ...
)
  1. Adding a send message configuration with SendMessageConfiguration class.

ChatView(
  ...
  sendMessageConfig: SendMessageConfiguration(
    replyMessageColor: Colors.grey,
    replyDialogColor:Colors.blue,
    replyTitleColor: Colors.black,
    closeIconColor: Colors.black,
  ),
  ...
)
  1. Adding a chat bubble configuration with ChatBubbleConfiguration class.

ChatView(
  ...
  chatBubbleConfig: ChatBubbleConfiguration(
    onDoubleTap: (){
       // Your code goes here
    },
    outgoingChatBubbleConfig: ChatBubble(      // Sender's message chat bubble
      color: Colors.blue,
      borderRadius: const BorderRadius.only(
        topRight: Radius.circular(12),
        topLeft: Radius.circular(12),
        bottomLeft: Radius.circular(12),
      ),
    ),
    inComingChatBubbleConfig: ChatBubble(      // Receiver's message chat bubble
      color: Colors.grey.shade200,
      borderRadius: const BorderRadius.only(
        topLeft: Radius.circular(12),
        topRight: Radius.circular(12),
        bottomRight: Radius.circular(12),
      ),
    ),
  )
  ...
)
  1. Adding swipe to reply configuration with SwipeToReplyConfiguration class.

ChatView(
  ...
  swipeToReplyConfig: SwipeToReplyConfiguration(
    onLeftSwipe: (message, sendBy){
        // Your code goes here
    },
    onRightSwipe: (message, sendBy){
        // Your code goes here
    },
  ),
  ...
)
  1. Adding messages configuration with MessageConfiguration class.

ChatView(
  ...
  messageConfig: MessageConfiguration(
    messageReactionConfig: MessageReactionConfiguration(),      // Emoji reaction configuration for single message
    imageMessageConfig: ImageMessageConfiguration(
      onTap: (){
          // Your code goes here
      },
      shareIconConfig: ShareIconConfiguration(
        onPressed: (){
           // Your code goes here
        },
      ),
    ),
  ),
  ...
)
  1. Adding reaction pop-up configuration with ReactionPopupConfiguration class.

ChatView(
  ...
  reactionPopupConfig: ReactionPopupConfiguration(
    backgroundColor: Colors.white,
    userReactionCallback: (message, emoji){
      // Your code goes here
    }
    padding: EdgeInsets.all(12),
    shadow: BoxShadow(
      color: Colors.black54,
      blurRadius: 20,
    ),
  ),
  ...
)
  1. Adding reply pop-up configuration with ReplyPopupConfiguration class.

ChatView(
  ...
  replyPopupConfig: ReplyPopupConfiguration(
    backgroundColor: Colors.white,
    onUnsendTap:(message){                   // message is 'Message' class instance
       // Your code goes here
    },
    onReplyTap:(message){                    // message is 'Message' class instance
       // Your code goes here
    },
    onReportTap:(){
       // Your code goes here
    },
    onMoreTap:(){
       // Your code goes here
    },
  ),
  ...
)
  1. Adding replied message configuration with RepliedMessageConfiguration class.

ChatView(
   ...
   repliedMessageConfig: RepliedMessageConfiguration(
     backgroundColor: Colors.blue,
     verticalBarColor: Colors.black,
     repliedMsgAutoScrollConfig: RepliedMsgAutoScrollConfig(),
   ),
   ...
)
  1. For customizing typing indicators use typeIndicatorConfig with TypeIndicatorConfig.

ChatView(
  ...

  typeIndicatorConfig: TypeIndicatorConfiguration(
    flashingCircleBrightColor: Colors.grey,
    flashingCircleDarkColor: Colors.black,
  ),
  ...
)
  1. For showing hiding typeIndicatorwidget use ChatController.setTypingIndicaor, for more info see ChatController.

/// use it with your [ChatController] instance.
_chatContoller.setTypingIndicator = true; // for showing indicator
_chatContoller.setTypingIndicator = false; // for hiding indicator
  1. Adding linkpreview configuration with LinkPreviewConfiguration class.

ChatView(
  ...
  chatBubbleConfig: ChatBubbleConfiguration(
    linkPreviewConfig: LinkPreviewConfiguration(
      linkStyle: const TextStyle(
        color: Colors.white,
        decoration: TextDecoration.underline,
      ),
      backgroundColor: Colors.grey,
      bodyStyle: const TextStyle(
        color: Colors.grey.shade200,
        fontSize:16,
      ),
      titleStyle: const TextStyle(
        color: Colors.black,
        fontSize:20,
      ),
    ),
  )
  ...
)
  1. Adding pagination.

ChatView(
  ...
  isLastPage: false,
  featureActiveConfig: FeatureActiveConfig(
    enablePagination: true,
  ),
  loadMoreData: chatController.loadMoreData,
  ...
)
  1. Add image picker icon configuration.

ChatView(
  ...
  sendMessageConfig: SendMessageConfiguration(
    imagePickerIconsConfig: ImagePickerIconsConfiguration(
      cameraIconColor: Colors.black,
      galleryIconColor: Colors.black,
    )
  )
  ...
)
  1. Add ChatViewState customisations.

ChatView(
  ...
  chatViewStateConfig: ChatViewStateConfiguration(
    loadingWidgetConfig: ChatViewStateWidgetConfiguration(
      loadingIndicatorColor: Colors.pink,
    ),
    onReloadButtonTap: () {},
  ),
  ...
)
  1. Setting auto scroll and highlight config with RepliedMsgAutoScrollConfig class.

ChatView(
    ...
    repliedMsgAutoScrollConfig: RepliedMsgAutoScrollConfig(
      enableHighlightRepliedMsg: true,
      highlightColor: Colors.grey,
      highlightScale: 1.1,
    )
    ...
)
  1. Callback when a user starts/stops typing in TextFieldConfiguration

ChatView(
    ...
      sendMessageConfig: SendMessageConfiguration(

          textFieldConfig: TextFieldConfiguration(
            onMessageTyping: (status) {
                // send composing/composed status to other client
                // your code goes here
            },


        /// After typing stopped, the threshold time after which the composing
        /// status to be changed to [TypeWriterStatus.typed].
        /// Default is 1 second.
            compositionThresholdTime: const Duration(seconds: 1),

        ),
    ...
  )
)
  1. Passing customReceipts builder or handling stuffs related receipts see ReceiptsWidgetConfig in outgoingChatBubbleConfig.

ChatView(
   ...
      featureActiveConfig: const FeatureActiveConfig(
            /// Controls the visibility of message seen ago receipts default is true
            lastSeenAgoBuilderVisibility: false,
            /// Controls the visibility of the message [receiptsBuilder]
            receiptsBuilderVisibility: false),
       ChatBubbleConfiguration(
          inComingChatBubbleConfig: ChatBubble(
            onMessageRead: (message) {
              /// send your message reciepts to the other client
              debugPrint('Message Read');
            },

          ),
          outgoingChatBubbleConfig: ChatBubble(
              receiptsWidgetConfig: ReceiptsWidgetConfig(
                      /// custom receipts builder
                      receiptsBuilder: _customReceiptsBuilder,
                      /// whether to display receipts in all
                      /// message or just at the last one just like instagram
                      showReceiptsIn: ShowReceiptsIn.lastMessage
              ),
            ),
        ),

  ...

)

How to use

Check out blog for better understanding and basic implementation.

Also, for whole example, check out the example app in the example directory or the ‘Example’ tab on pub.dartlang.org for a more complete example.
